Fully Automatic Cell Counter
Fully Automatic Cell Counter
Product Information

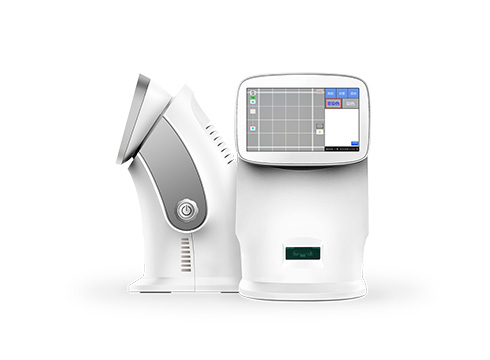

The JSY-SC-031N fully automatic cell counter is an integrated bright field cell counter with a built-in high-power optical system, especially suitable for accurate counting of small diameter cell specimens. Referring to the counting standard of the "blood cell counting board", four regions are used for result statistics, with three counting modes of "non staining", "staining", and "manual comparison", which can automatically achieve cell viability counting.
Product Features

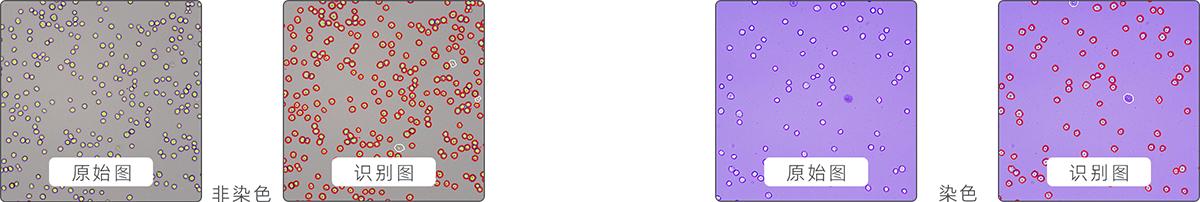

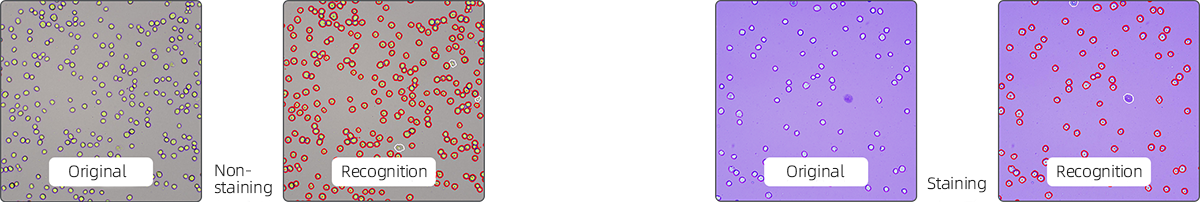

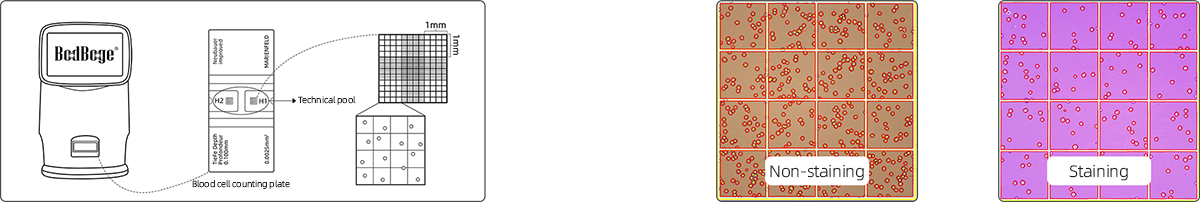

1-Non staining count&Trypan blue staining count

Non staining counting (invention patent number: ZL 2013101014030): Without staining, cells can be directly counted and differentiated between live and dead cells, suitable for cultured cells in good condition and with a clean background; Trypan blue staining counting: a classic method for distinguishing between live and dead cells, with more intuitive color changes compared to non staining methods.

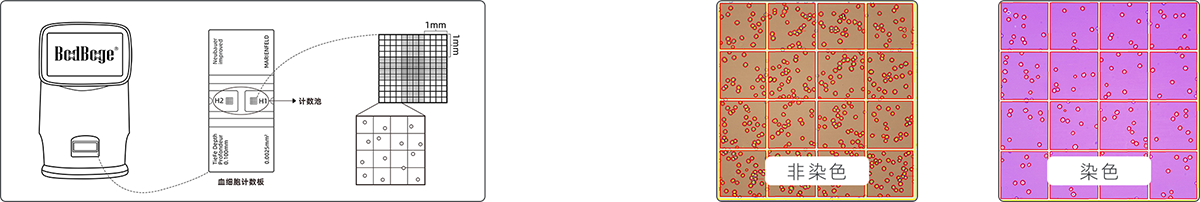

2-Hemocytometer&Manual comparison

The instrument is designed according to the "Blood Cell Counting Board" counting standard (JJG 552-1988 Blood Cell Counting Board Trial Verification Regulations) and can use standard blood cell counting boards; Cell concentration=(sum of four large square cell numbers)/4 x (dilution ratio) x 104,The accuracy of counting results can be manually verified.

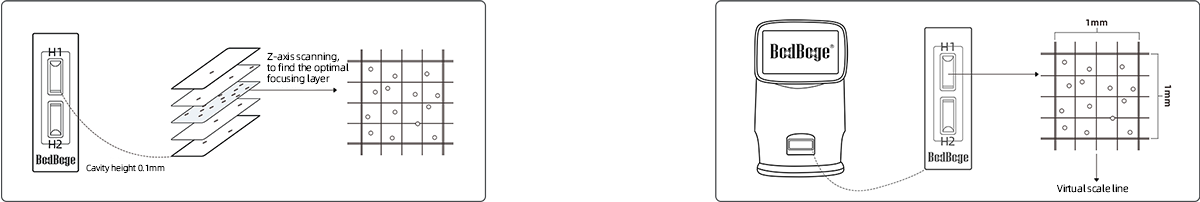

3-Fully automatic intelligent linkage system&Cell count slide

Adaptive intelligent autofocus technology can adaptively adjust the focal length (Z-axis scanning), ensuring clear and sharp cell images in different regions and states. Combined with precise X and Y axis motion, it can achieve multi area image acquisition (up to 21 target surfaces); The cell counting slide adopts a two well design, with a 0.1mm counting cell height, fast cell sedimentation, fewer layers, and more accurate counting.

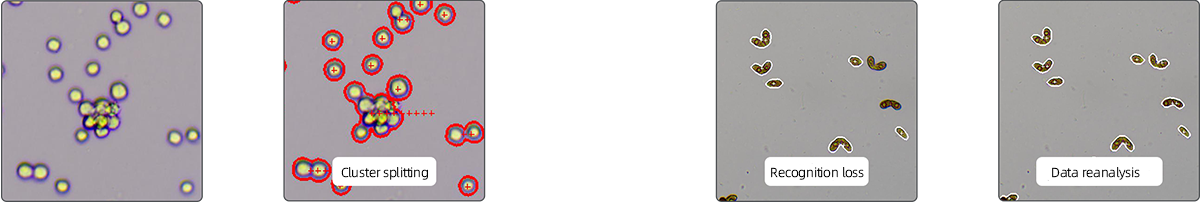

4-High definition imaging&Intelligent software recognition analysis

The instrument is equipped with 10X optical magnification and a 10 million color camera, making cell imaging clearer; Advanced image processing algorithms can automatically split clustered cells, ensuring high-precision image recognition. Customizable software recognition parameters can be used to re identify and analyze counting results.

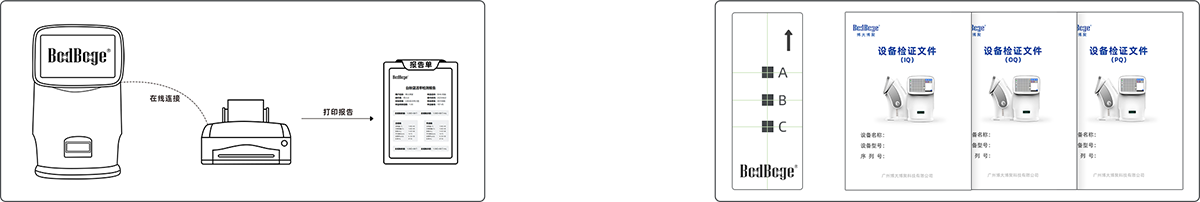

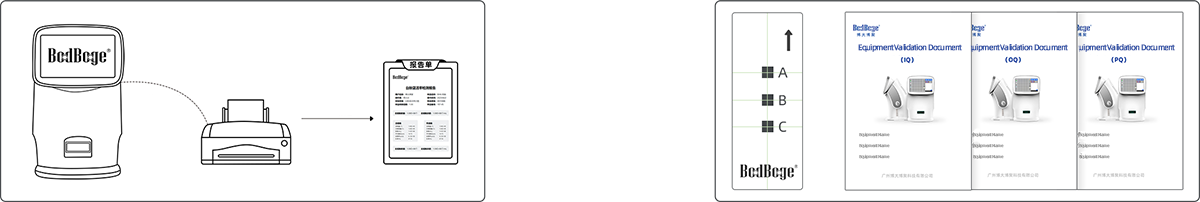

5-Complies with FDA 21 CFR Part 11 and GMP requirements

The instrument has audit tracking and multi-level user permission management functions, supporting online printing of data reports; Provide 3Q verification service (imitation cell standard counting board, utility model patent number: ZL 2020 21855359.4).

Technical Parameters
count modeNon staining count+staining count+manual comparison
Counting concentration range0.25×104 – 3×107Cells/mL
Measuring diameter range1~200µm
Focusing methodAuto-focus+Manual focusing
Optical magnification10X
pixel10 million
weightmake an appointment 6KG
Supporting Consumables
product nameProduct item numberModelProduct specifications
Cell count slideJSP-GM010JSP-GM50 pieces/box, 2 holes/piece
Tai Pan Blue Dyeing Solution(0.2%)MR-01DB0101.8mL/tube
Q&A
  • Q1
    Is instrument operation complex?
    A
    The instrument adopts a desktop all-in-one design, with a simple and intuitive operating interface. After adding samples, cell counting can be performed, and the counting process is fully automated without human intervention.
  • Q2
    How to ensure the accuracy of counting results?
    A
    The instrument is designed according to the "Trial Verification Regulations for Blood Cell Counting Plates". A blood cell counting plate can be used, and standard calculation formulas for area volume and concentration can be used to manually verify the accuracy of the calculation results.
  • Q3
    Can the instrument software establish cell sample types
    A
    Yes, the instrument software can customize software recognition parameters to help you establish special cell sample types
  • Q4
    What does after-sales service include?
    A
    Including technical support, repair services, warranty period, etc.
