Fluorescence Cell Counter
Fluorescence Cell Counter
Product Information
Jan-F4 Fluorescent Cell Counter.Equipped with brightfield and dual-fluorescence channels. Integrated with intelligent image recognition and optical magnification systems, enabling rapid viability analysis for cell samples from tissues, blood and other sources.
Product Features

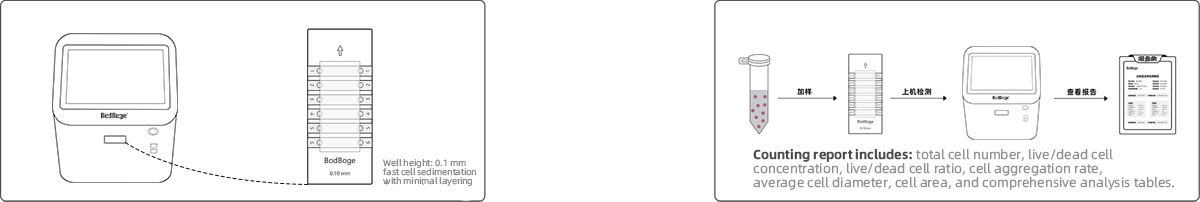

1. High-throughput, Consumable-free, Convenient and Efficient

High-throughput & Consumable-free: The instrument is compatible with reusable washable multi-well glass plates. The 6-well design supports simultaneous counting of six samples.Convenient & Efficient: One-click operation enables fast cell counting and intuitive display of visualized test data.

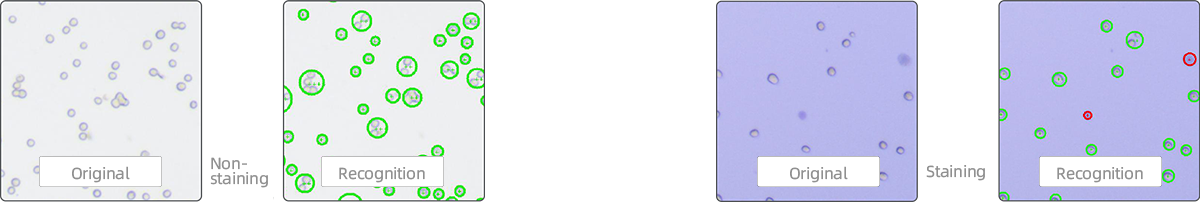

2. Non-staining & Trypan Blue Viability Counting

Non-staining Viability Counting (Patent No.: ZL 201310101403.0): It can distinguish live and dead cells without dyes, suitable for well-cultured cells with clean background.Trypan Blue Viability Counting: A classic method for live/dead cell differentiation, featuring more intuitive color changes compared with the non-staining method.

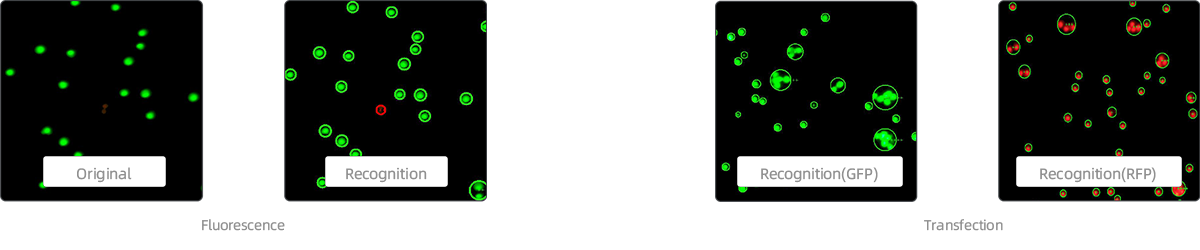

3. Dual-fluorescence Viability & Transfection Rate Counting

Dual-fluorescence Viability Counting: Supports cell experiments with red-green dual fluorescence labeling using AOPI fluorescent dyes.Transfection Rate Counting: Accurately detects the transfection efficiency of green fluorescent protein (GFP) and red fluorescent protein (RFP).




Please contact our sales staff for more product models.


Technical Parameters
Counting ModeNon-staining viability counting, trypan blue viability counting, dual-fluorescence viability counting, transfection rate counting, organoid counting
Sample volume for detection10 μL
Counting Concentration Range1×10⁴ – 1×10⁷ cells/mL
Focus ModeAuto focus + manual focus
Optical Magnification5X
Compatible ConsumablesCell counting slides, multi-well glass plates
Display10.1-inch large screen



Supporting Consumables
product nameProduct item numberModelProduct specifications
Cell count slideJSP-GM010JSP-GM

50 pieces/box, 2 holes/piece

Multi-well Glass PlateBDBJ-050JSP-B066 wells per plate
Tai Pan Blue Dyeing Solution(0.2%)MR-01DB0101.8mL/tube
Dual-fluorescence dye (AOPI)MR-03AOPI0101.8mL/tube
